Socket compatibility | AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
Height (without fan) | 168 mm |
Width (without fan) | 150 mm |
Depth (without fan) | 127 mm |
Weight (without fan) | 1180 g |
Height (with fan) | 168 mm |
Width (with fan) | 150 mm |
Depth (with fan) | 152 mm |
Weight (with fan) | 1525 g |
Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
NSPR | 228 |
Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 (optional NA-SFC12 fan clips required) |

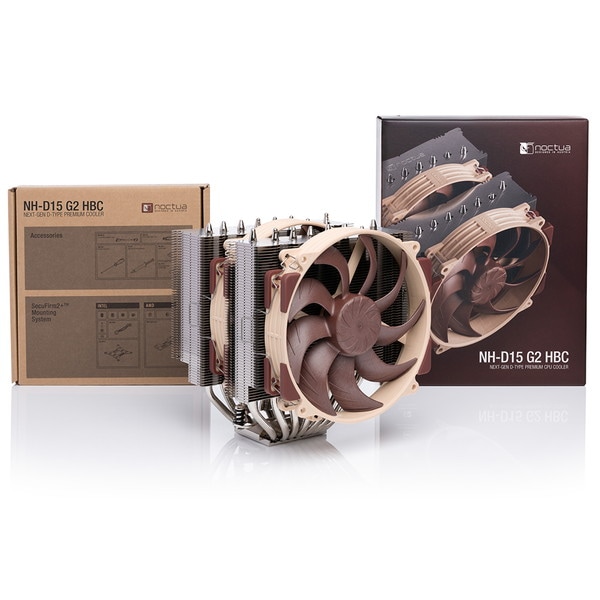

Scope of delivery | 2x NF-A14x25r G2 PWM premium fan 2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable NT-H2 high-grade thermal compound NA-TPG1 thermal paste guard for AM5 NA-CW1 cleaning wipe SecuFirm2+? multi-socket mounting system NM-SD1 Torx? T20 screwdriver Noctua metal case-badge |
Warranty | 6 years |
Model | 2x NF-A14x25r G2 PWM |
Bearing | SSO2 |
Max. rotational speed (+/- 10%) | 1500 RPM |
Max. rotational speed with L.N.A. (+/- 10%) | 1250 RPM |
Max. airflow | 155.6 m?/h |
Max. airflow with L.N.A. | 127.1 m?/h |
Max. acoustical noise | 24.8 dB(A) |
Max. acoustical noise with L.N.A. | 19.7 dB(A) |
Blade geometry | Progressive-Bend impeller |
Acoustical noise | 24.8 dB(A) |
Input power (max.) | 2.28 W |
Voltage range | 12 V |
MTTF | > 150.000 h |
